产品介绍 Product Introduction

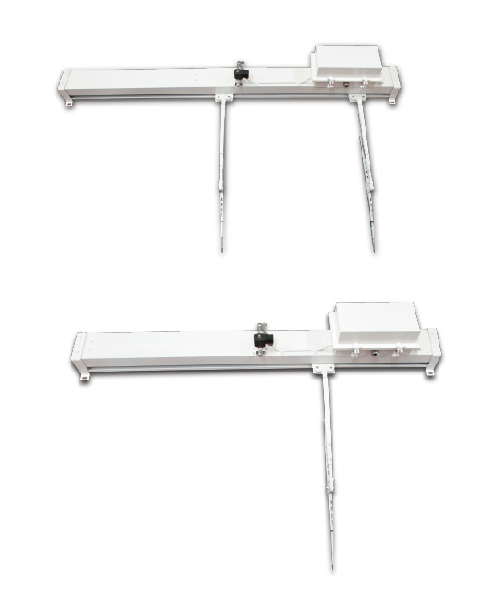

Y型船用平移式刮水器Y-type Horizontal Wiper

Y型船用平移式刮水器适用于船舶驾驶室的玻璃窗户，能有效地刮扫窗户玻璃上受淋的雨水，保证驾驶员有清晰、宽阔的视野，以利安全航行，是船舶上不可缺少的必备辅助设备。
Y-type marine horizontal wiper is used on windows of wheelhouse, which wipes off rain on windows effectively, giving the pilot clear and wide visual field to ensure safe sailing. It is an indispensable auxiliary equipment on vessel.

技术参数 Parameters
电源：单相AC220V/110V、50Hz/60Hz及其它特殊电压；
刮扫行程：535~1650mm（20〃~65〃特殊规格可以特制）；
刮扫宽度：500~1000mm（特殊规格可以特制）；
电机：单相、全封闭、无级调速、额定转速3000r/min；
减速箱速比：17：1；
最大输出转速：180r/min。

Power supply: single-phase AC220V/110V, 50Hz/60Hz and other special voltage.
Wiping length:535-1650mm(20〃~65〃)(special type can be tailor-made)
Wiping breadth:500-1000mm(special type can be tailor-made)
Motor: Single-phase, whole-sealed, infinite variable speed, rated speed about 3000rpm.
Transmission ratio: 17:1.
Maximum output speed: 180r/min.

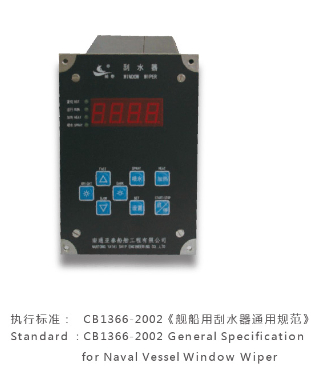

执行标准：CB1366-2002《舰船用刮水器通用规范》
Standard: CB1366-2002 General Specification for Naval Vessel Window Wiper
